24 fiber optic terminal box

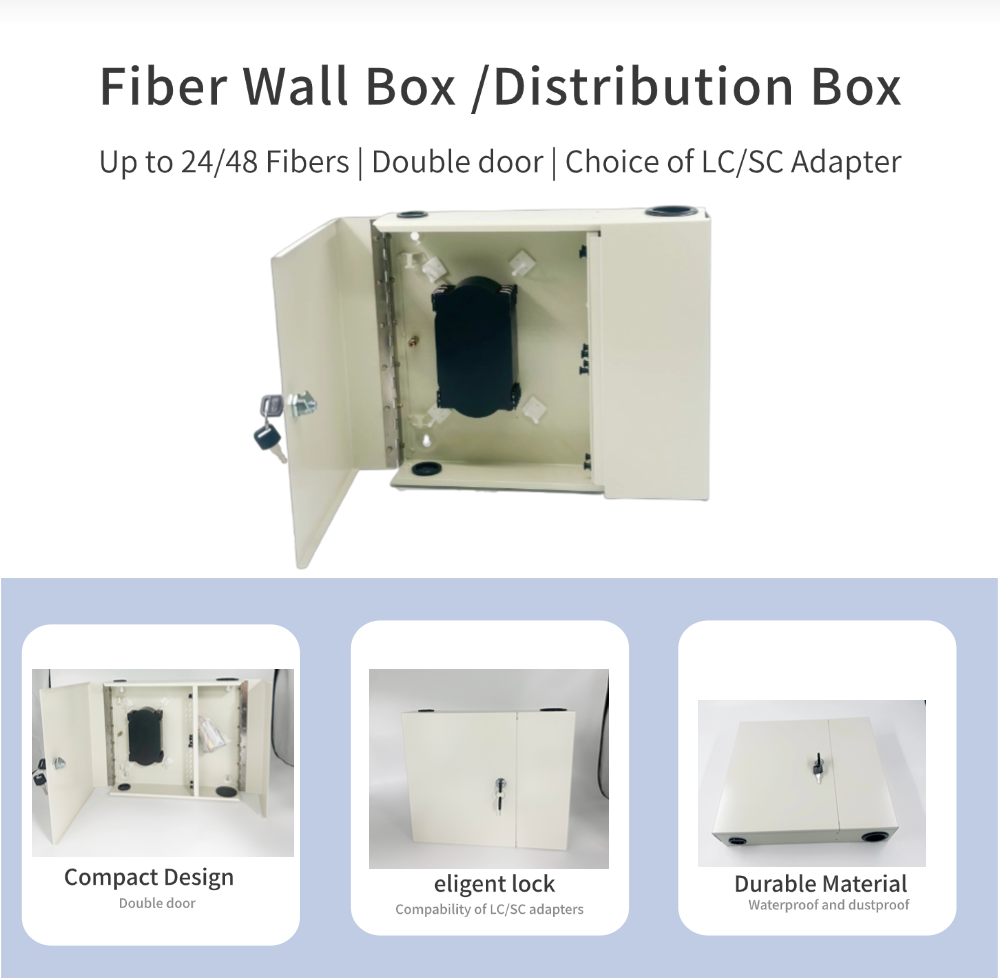

24 Port Fiber Wall Box metal LC/SC Adapter 24 Core Fiber enclosure with double door unloaded

G819-24SC
Fiber Wall Box, also known as fiber termination box (FTB), is a compact fiber management product of small size. Gorelink Fiber Wall Box integrates optical fiber splicing, splitting, and wiring, it is designed to a termination point for the feeder cable to connect with drop cable in an FTTx communication network system.
Delivery
EXW
minimum order
1 piece
Country of Origin
Made in China
Stock Time
7Day
Quantity:
Contact Now
add to cart

Gorelink Fiber Optic Wall mounted box is made of high-quality cold-rolled steel sheet and electro-fused paint, it is designed for high-density and secure terminations. Its waterproof design ensures that both the terminations and the patching are safe. The boxes have 20mm knockouts and pre-drilled fixing holes.


Application

  • Widely used in FTTH access network
  • Fiber to The Point (FTTX)
  • Passive Optical Networks (PON)
  • Telecommunication Networks

Key Features

  • Supplied with cable management & splice tray
  • Front panel can be changeable as per the requirements
  • Material: Cold rolled steel
  • 24 port
  • Capacity :12/24/48 core(LC Duplex)
  • Dimension:350mm*350mm*120mm
  • Choice of SC/LC/ST/FC adapter
  • Hinged lockable doors
  • Individual locks
  • Cable management kit included
