Gorelink Fiber terminal box,8 cores, Special design,suitable for SC/LC adapters

Overview

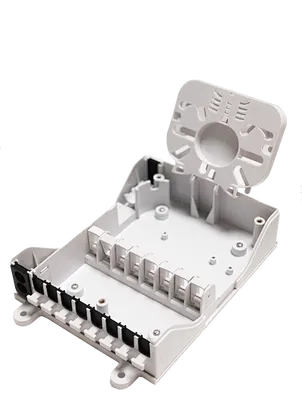

Gorelink fiber terminal box is designed to the increasing amount of Passive Optical LAN and FTTX applications such as Fiber to the Home or Fiber to the Desk, requiring the high speed connections provided by Optical Fiber. this fiber terminal box can provide flexibility by having a number of options, coming either unloaded, with simplex or duplex adapters. the terminal box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC type. It is suitable for FTTH optical fiber access and easy to install and maintain in the site.

Application

• Fiber to The Point (FTTX)
• Fiber to The Home (FTTH)
• Passive Optical Networks (PON)
• Gigabit Passive Optical Networks (GPON)
• Local Area Networks (LAN)
• Cable Television (CATV) Test Equipment

Features

• Small size with enough capacity
• Suitable for 1:8 splitter or 8 cores cable splicing
• The top cover can the top cover can flip up ≥90°
• The splicing area and cable connection are separated which avoid crossover.
• Radius curvature of fiber :≥40 mm
• Optical Disc Additional Loss :≤0.01 dB
• Side pressure resistance :≥2000 N /10cm
• Impact resistance :≥20 N.m
• Telcordia GR-1209-CORE-2001
• Telcordia GR-1221-CORE-1999
• YD/T 2000.1-2009
• RoHS compliant
